About the DIY IBC Tote Rainwater Collection System Plans | Rain Barrel Shelter & Stand Blueprint | Woodworking Water Harvesting Setup Guide
Maximize Your Rainwater Harvesting with a Heavy-Duty IBC Tote Shelter! 🌧️💧
Upgrade your garden's water supply with our comprehensive DIY IBC Tote Rainwater Collection System Plans. This digital blueprint provides step-by-step woodworking instructions to build a sturdy, protective shelter designed specifically for large IBC tote water tanks (commonly 275 or 330 gallons). Perfect for homesteaders, avid gardeners, and anyone looking to create a sustainable, off-grid water storage solution!
Why Build This System?

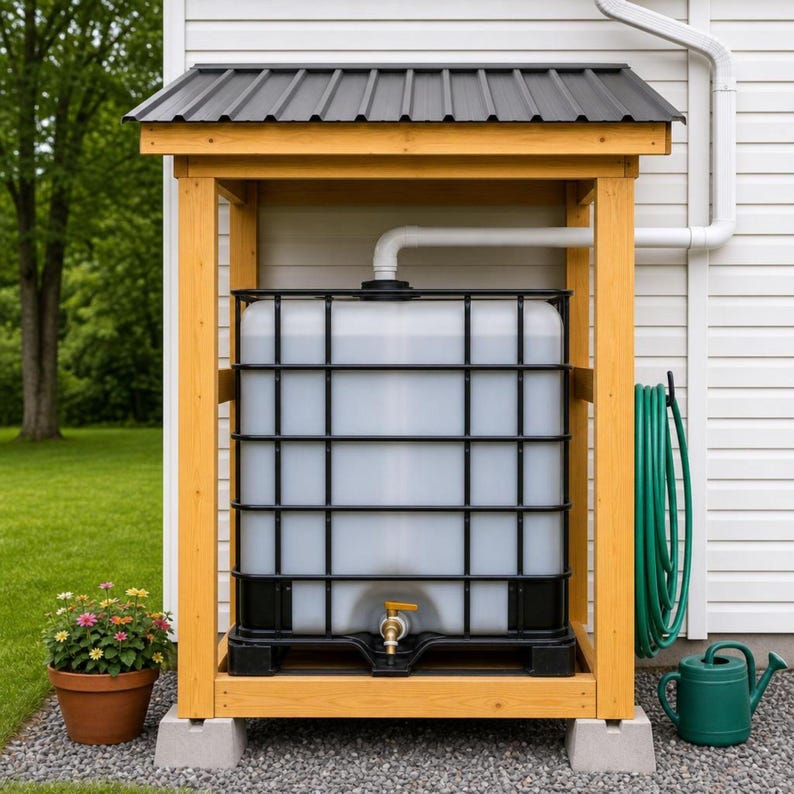

Exposing a plastic water tank to direct sunlight can lead to algae growth and material degradation. This custom-built wooden shelter features a durable slanted roof to protect your water supply from the elements, ensuring clean water and a longer lifespan for your tank. Plus, the elevated design and side-mounted hose hanger make watering your garden incredibly convenient.

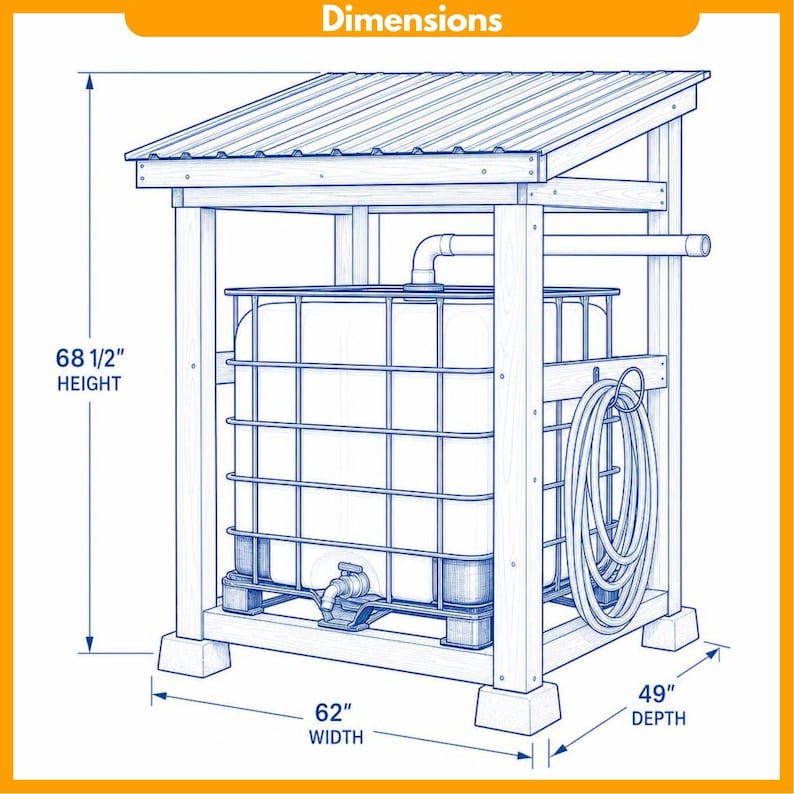

Project Dimensions:
Overall Width: 62"
Overall Depth: 49"
Overall Height: 68 1/2"
System Features:
Perfect Fit: Custom-sized to house a standard bulk IBC tote tank comfortably.

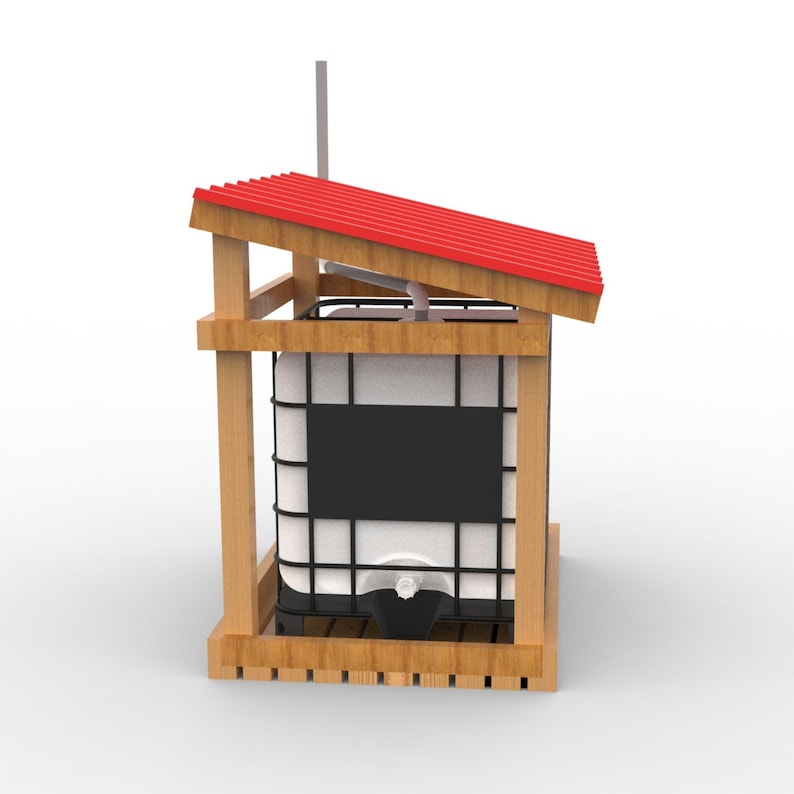

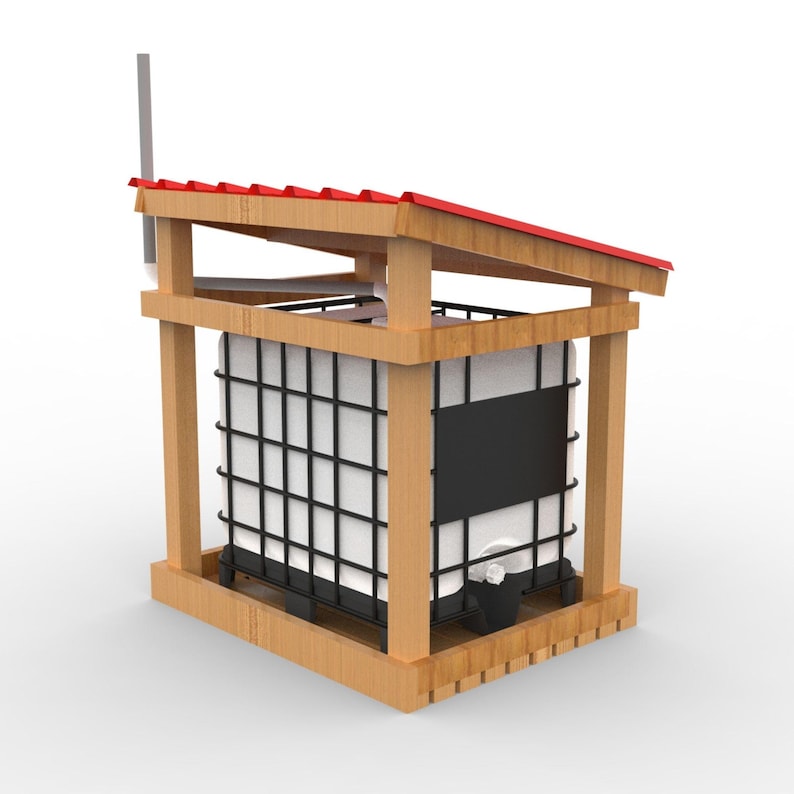

Weather Protection: Slanted corrugated roof design protects the tank from sun and debris.
Solid Foundation: Designed to rest on sturdy concrete pier blocks for maximum stability and rot prevention.

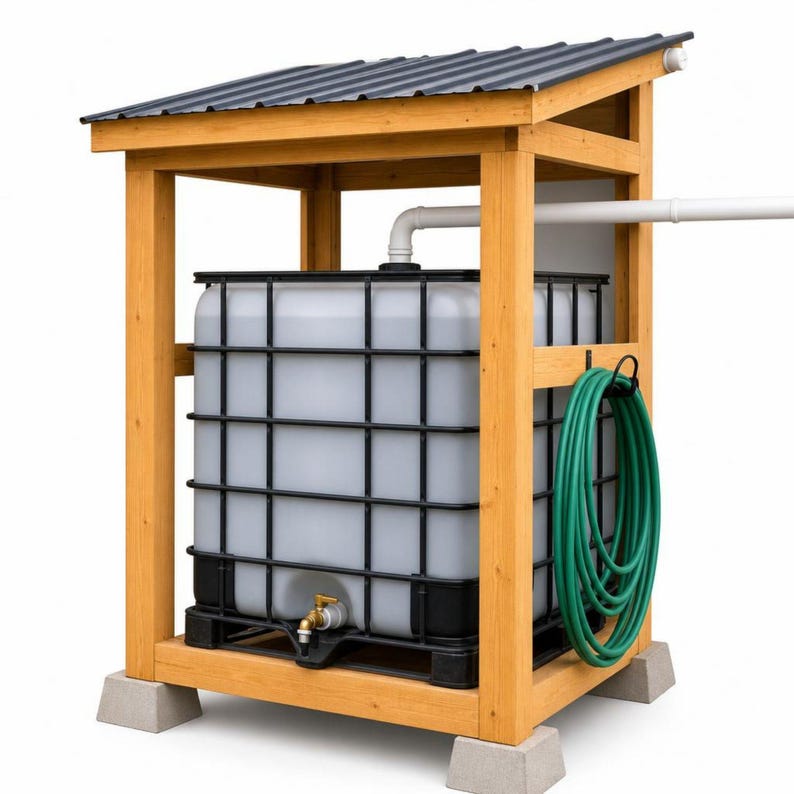

Smart Add-ons: Includes framing for a convenient side-mounted garden hose hanger.
What’s Included in This Digital Download?
Detailed Step-by-Step Woodworking Instructions
Complete Material, Hardware, & Cut List
Clear, Easy-to-Read 3D Blueprint Diagrams with exact measurements
Tips for connecting the system to your home's downspout
Please Note:
This is a DIGITAL DOWNLOAD only. No physical items, lumber, hardware, or water tanks will be shipped to you. You are purchasing the PDF plans to build the wooden shelter structure yourself.
Build a beautiful, functional addition to your backyard and start harvesting rainwater sustainably today!
